Analysis of Audit Fees Data in SEC DEF 14A Definitive Proxy Statements

Open In Colab   Download Notebook

On this page:
  • Quick Start
    • Analyzing Data
      • Deduplicate Records
        • Outlier Removal
          • Audit Fees

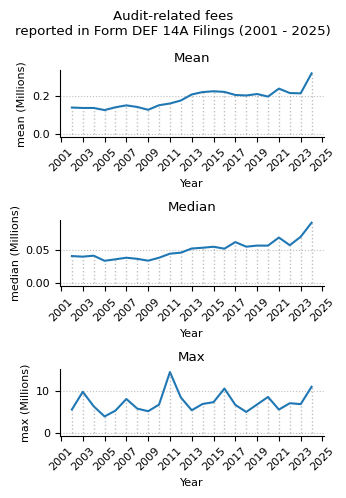

            • Audit-related fees

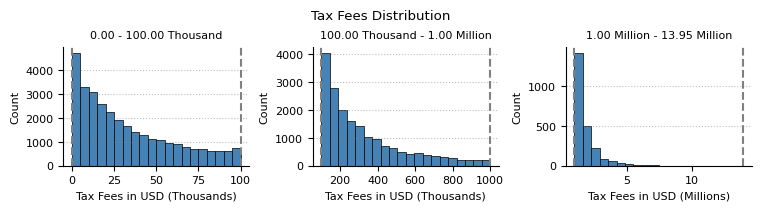

              • Tax Fees

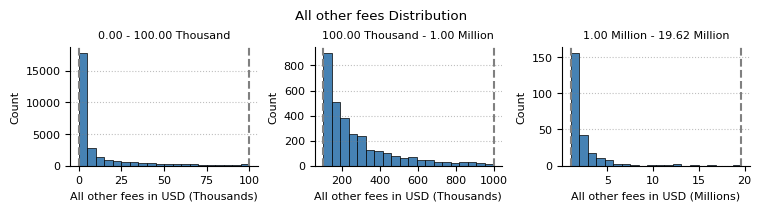

                • All other fees

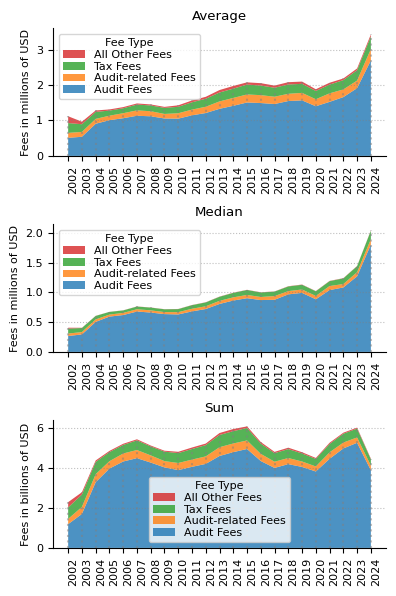

                  • Evolution and comparison of fee types

                    This notebook demonstrates an exploratory data analysis examining audit fees reported by public companies filed in SEC Form DEF 14A.

                    Form DEF 14A (Definitive Proxy Statement) is a filing submitted to the U.S. Securities and Exchange Commission (SEC) by public companies ahead of shareholder meetings. Among other information, the proxy statements include the amount of fees payed to independent auditors.

                    Leveraging our Audit Fees API, we transform these disclosures into a standardized JSON format, facilitating comprehensive and efficient analysis.

                    Our analysis addresses several dimensions:

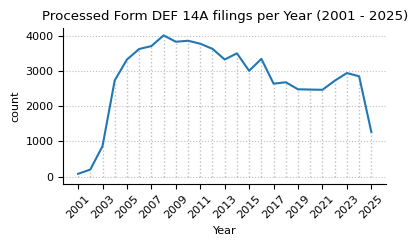

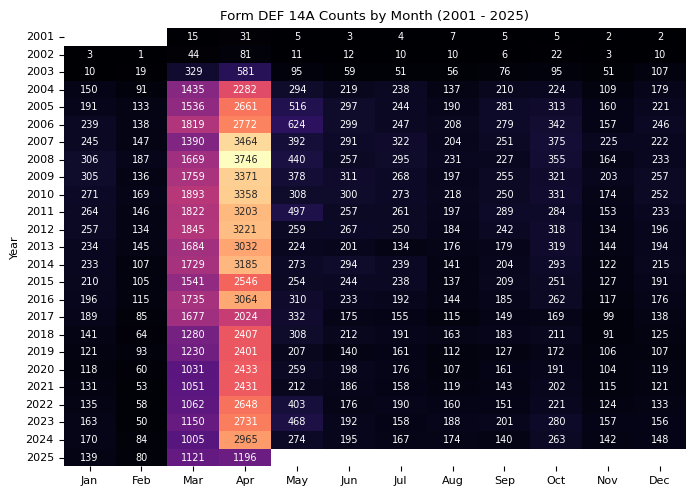

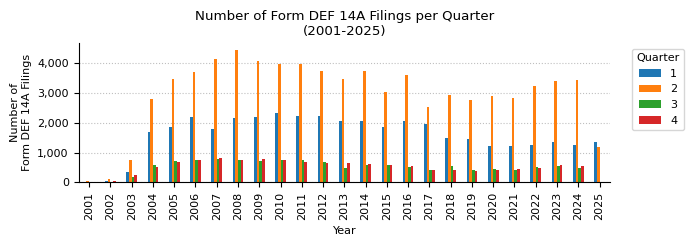

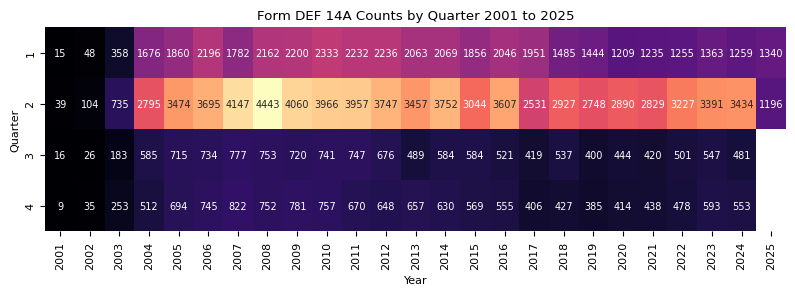

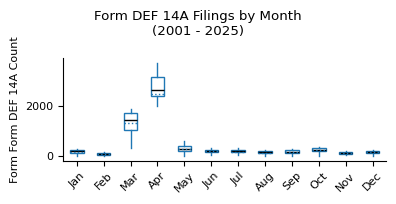

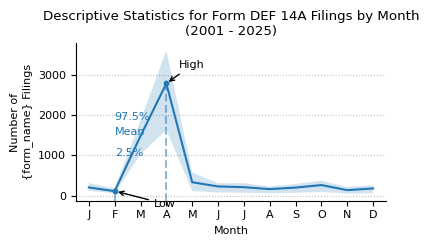

                    • Temporal trends in the number of Form DEF 14A filings from 2001 to 2025, segmented by quarter, month, and intraday timing (pre-market, regular market hours, after-market).
                    • Detailed analysis of the distribution and temporal evolution of:

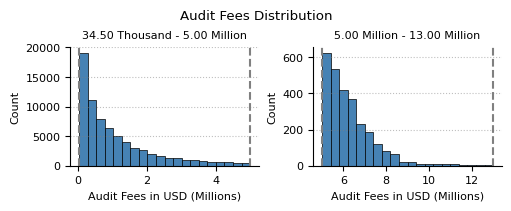

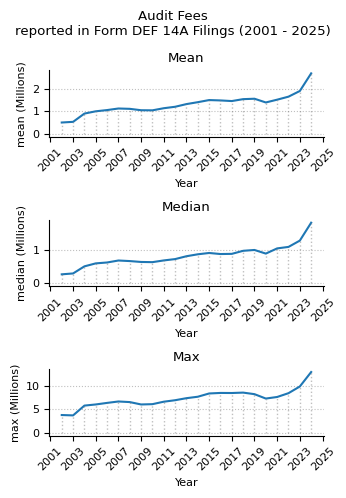

                      • Audit Fees

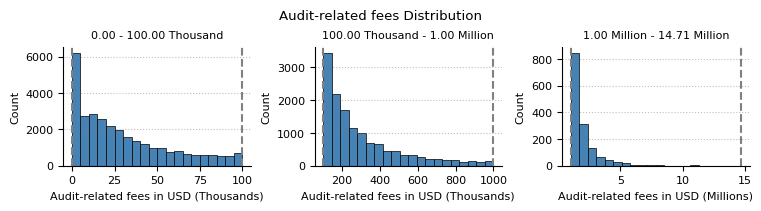

                      • Audit-Related Fees

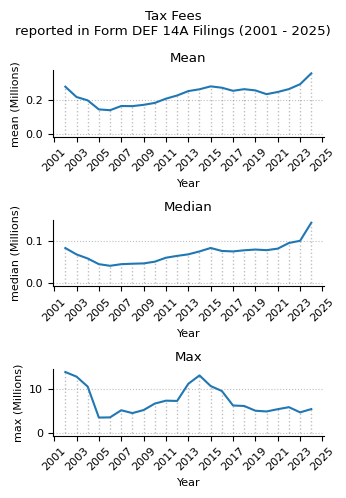

                      • Tax Fees
                      • All Other Fees Category
                    • Temporal evolution and comparison of the four fee types

                    Quick Start

                    To quickly retrieve data for a specific company, modify the following example as needed. For more detail, see Audit Fees API documentation and sec-api-python package readme.

                    %pip install -q sec_api # use %pip for reliable install in current environment
                    # NOTE: Replace with your own API key
                    API_KEY_SEC_API = "YOUR_API_KEY"
                    from sec_api import AuditFeesApi
                    import json

                    auditFeesApi = AuditFeesApi(api_key=API_KEY_SEC_API)

                    search_params = {
                        "query": "entities.cik:1318605",
                        "from": "0",
                        "size": "1",
                        "sort": [{"filedAt": {"order": "desc"}}],
                    }

                    # get proposed sales information, sales history, and other details
                    response = auditFeesApi.get_data(search_params)
                    filing = response["data"]

                    print(json.dumps(filing, indent=2))
                    {
                      "id": "dcfe557d7b36025fb47997b38c2dc46d",
                      "accessionNo": "0001193125-16-543341",
                      "fileNo": "001-34756",
                      "formType": "DEF 14A",
                      "filedAt": "2016-04-15T17:09:07-04:00",
                      "periodOfReport": "2016-05-31",
                      "entities": [
                        {
                          "cik": "1318605",
                          "ticker": "TSLA",
                          "companyName": "TESLA MOTORS INC (Filer)",
                          "irsNo": "912197729",
                          "fiscalYearEnd": "1231",
                          "stateOfIncorporation": "DE",
                          "sic": "3711 Motor Vehicles & Passenger Car Bodies",
                          "act": "34",
                          "fileNo": "001-34756",
                          "filmNo": "161575120"
                        }
                      ],
                      "records": [
                        {
                          "year": 2014,
                          "auditFees": 2969000,
                          "auditRelatedFees": 6000,
                          "taxFees": 10000,
                          "allOtherFees": 2000,
                          "totalFees": 2987000,
                          "auditor": "PricewaterhouseCoopers LLP"
                        },
                        {
                          "year": 2015,
                          "auditFees": 4237000,
                          "auditRelatedFees": 0,
                          "taxFees": 0,
                          "allOtherFees": 2000,
                          "totalFees": 4239000,
                          "auditor": "PricewaterhouseCoopers LLP"
                        }
                      ]
                    }
                    import sys
                    import os
                    import time
                    import random

                    # from multiprocessing import Pool # use in .py files only
                    from concurrent.futures import ThreadPoolExecutor

                    YEARS = range(2025, 1999, -1) # from 2025 to 2018
                    TEMP_FILE_TEMPLATE = "./temp_file_audit_fees_{}.jsonl"
                    TARGET_FILE = "./audit-fees-dataset.jsonl.gz"


                    def process_year(year):
                        backoff_time = random.randint(10, 800) / 1000
                        print(f"Starting year {year} with backoff time {backoff_time:,}s")
                        sys.stdout.flush()
                        time.sleep(backoff_time)

                        tmp_filename = TEMP_FILE_TEMPLATE.format(year)
                        tmp_file = open(tmp_filename, "a")

                        for month in range(12, 0, -1):
                            search_from = 0
                            month_counter = 0

                            while True:
                                query = f"filedAt:[{year}-{month:02d}-01 TO {year}-{month:02d}-31]"
                                searchRequest = {
                                    "query": query,
                                    "from": search_from,
                                    "size": "50",
                                    "sort": [{"filedAt": {"order": "desc"}}],
                                }

                                response = None
                                try:
                                    response = auditFeesApi.get_data(searchRequest)
                                except Exception as e:
                                    print(f"{year}-{month:02d} error: {e}")
                                    sys.stdout.flush()
                                    continue

                                if response == None or len(response["data"]) == 0:
                                    break

                                search_from += 50
                                month_counter += len(response["data"])
                                jsonl_data = "\n".join([json.dumps(entry) for entry in response["data"]])
                                tmp_file.write(jsonl_data + "\n")

                            print(f"Finished loading {month_counter} filings for {year}-{month:02d}")
                            sys.stdout.flush()

                        tmp_file.close()

                        return year


                    if not os.path.exists(TARGET_FILE):
                        with ThreadPoolExecutor(max_workers=4) as pool:
                            processed_years = list(pool.map(process_year, YEARS))
                        print("Finished processing all years.", processed_years)

                        import gzip

                        # Merge the temporary files into one final compressed file
                        with gzip.open(TARGET_FILE, "wt", encoding="utf-8") as outfile:
                            for year in YEARS:
                                temp_file = TEMP_FILE_TEMPLATE.format(year)
                                if os.path.exists(temp_file):
                                    with open(temp_file, "r", encoding="utf-8") as infile:
                                        for line in infile:
                                            outfile.write(line) # Preserve JSONL format
                    else:
                        print("File already exists. Skipping download.")
                    File already exists. Skipping download.

                    Analyzing Data

                    # install all dependencies required for the notebook
                    %pip install -q pandas numpy matplotlib seaborn scipy
                    import pandas as pd
                    import numpy as np
                    import matplotlib.pyplot as plt
                    import matplotlib.style as style
                    import matplotlib.ticker as mtick
                    import seaborn as sns
                    from scipy.stats import skew, kurtosis

                    style.use("default")

                    params = {
                        "axes.labelsize": 8,
                        "font.size": 8,
                        "legend.fontsize": 8,
                        "xtick.labelsize": 8,
                        "ytick.labelsize": 8,
                        "font.family": "sans-serif",
                        "axes.spines.top": False,
                        "axes.spines.right": False,
                        "grid.color": "grey",
                        "axes.grid": True,
                        "axes.grid.axis": "y",
                        "grid.alpha": 0.5,
                        "grid.linestyle": ":",
                    }

                    plt.rcParams.update(params)

                    form_name = "Form DEF 14A"
                    form_name_escaped = "form-def-14a"
                    data_file = "../output/audit-fees-dataset-consumer.jsonl"

                    structured_data = pd.read_json(data_file, lines=True)

                    structured_data["firstEntityCik"] = structured_data.apply(
                        lambda x: x["entities"][0]["cik"], axis=1
                    )

                    structured_data["filedAt"] = pd.to_datetime(structured_data["filedAt"], utc=True)
                    structured_data["filedAt"] = structured_data["filedAt"].dt.tz_convert("US/Eastern")
                    structured_data = structured_data.sort_values("filedAt", ascending=True).reset_index(
                        drop=True
                    )

                    structured_data.drop_duplicates("accessionNo", keep="first", inplace=True)
                    structured_data["filedAtYear"] = structured_data["filedAt"].dt.year
                    structured_data["filedAtMonth"] = structured_data["filedAt"].dt.month
                    structured_data["filedAtQtr"] = structured_data["filedAtMonth"].apply(
                        lambda x: (x - 1) // 3 + 1
                    )
                    structured_data["filedAtDayOfWeek"] = structured_data["filedAt"].dt.day_name()
                    # filedAtClass: preMarket (4:00AM-9:30AM), regularMarket (9:30AM-4:00PM), afterMarket (4:00PM-8:00PM)
                    structured_data["filedAtClass"] = structured_data["filedAt"].apply(
                        lambda x: (
                            "preMarket"
                            if x.hour < 9 or (x.hour == 9 and x.minute < 30)
                            else (
                                "regularMarket"
                                if x.hour < 16
                                else "afterMarket" if x.hour < 20 else "other"
                            )
                        )
                    )
                    structured_data["periodOfReportYear"] = structured_data["periodOfReport"].apply(
                        lambda x: x.split("-")[0] if isinstance(x, str) else np.nan
                    )
                    structured_data["periodOfReportMonth"] = structured_data["periodOfReport"].apply(
                        lambda x: x.split("-")[1] if isinstance(x, str) else np.nan
                    )


                    structured_data = structured_data.explode("records").reset_index(
                        drop=True
                    ) # ← this fixes the issue

                    normalized_df = pd.json_normalize(structured_data["records"])

                    structured_data = pd.concat(
                        [structured_data.drop(columns=["records"]), normalized_df], axis=1
                    )
                    structured_data.head(5)
                    Out[7]:
                    idaccessionNofileNoformTypefiledAtperiodOfReportentitiestableIdfirstEntityCikfiledAtYear...periodOfReportYearperiodOfReportMonthyearauditFeesauditRelatedFeestaxFeesallOtherFeestotalFeesauditorvalueMultiplier
                    0fa41cba0dcce2dc28bbafb8e9c0a02b50000912057-01-007088001-00768DEF 14A2001-03-02 00:00:00-05:002001-04-11[{'cik': '18230', 'ticker': 'CAT', 'companyNam...0000912057-01-007088_10182302001...2001042000.06700000.0NaNNaN16200000.0NaN1000000
                    108ea344d14d1393d30248a8d448bca590000064463-01-500011000-06890DEF 14A2001-03-07 00:00:00-05:002001-04-24[{'cik': '64463', 'ticker': 'SLNH', 'companyNa...0000064463-01-500011_6644632001...2001042000.095415.0NaNNaN75645.0171060.0PricewaterhouseCoopers LLP1
                    2f7cfd8bdda5be061111e63f5090be67e0000950152-01-500225000-13270DEF 14A2001-03-09 00:00:00-05:002001-04-24[{'cik': '746481', 'companyName': 'UNB CORP/OH...0000950152-01-500225_247464812001...2001042000.067500.0NaNNaN163628.0NaNCrowe, Chizek and Company1
                    371e870d51d55da9c79c9f2f6fd2bb56a0000891554-01-501345001-09026DEF 14A2001-03-12 00:00:00-05:002001-04-26[{'cik': '714154', 'companyName': 'COMPAQ COMP...0000891554-01-501345_867141542001...2001042000.05600000.03200000.07400000.0NaN16200000.01
                    4dc18b46a1680a1925046a541f83b5ca40000950109-01-500193001-07410DEF 14A2001-03-12 00:00:00-05:002001-04-17[{'cik': '64782', 'companyName': 'MELLON FINAN...0000950109-01-500193_60647822001...2001042000.02553000.0NaN584000.09857000.012994000.0KPMG LLP1000

                    5 rows × 24 columns

                    unique_years = structured_data["filedAtYear"].nunique()
                    unique_companies = structured_data["firstEntityCik"].nunique()
                    unique_filings = structured_data["accessionNo"].nunique()
                    tickers = structured_data["entities"].apply(
                        lambda x: (
                            x[0]["ticker"]
                            if len(x) > 0 and isinstance(x[0], dict) and "ticker" in x[0]
                            else None
                        )
                    )
                    unique_tickers = tickers.nunique()
                    min_year = structured_data["filedAtYear"].min()
                    max_year = structured_data["filedAtYear"].max()
                    print(f"Loaded dataframe with main documents of {form_name} filings")
                    print(f"Number of filings: {unique_filings:,}")
                    print(f"Number of records: {len(structured_data):,}")
                    print(f"Number of years: {unique_years:,} ({min_year}-{max_year})")
                    # print(f"Number of unique companies: {unique_companies:,}")
                    print(f"Number of unique issuers: {unique_companies:,}")
                    print(f"Number of unique ticker symbols found: {unique_tickers:,}")
                    Loaded dataframe with main documents of Form DEF 14A filings
                    Number of filings: 69,229
                    Number of records: 139,251
                    Number of years: 25 (2001-2025)
                    Number of unique issuers: 10,057
                    Number of unique ticker symbols found: 4,655
                    structured_data.info()
                    <class 'pandas.core.frame.DataFrame'>
                    RangeIndex: 139251 entries, 0 to 139250
                    Data columns (total 24 columns):
                     # Column Non-Null Count Dtype
                    --- ------ -------------- -----
                     0 id 139251 non-null object
                     1 accessionNo 139251 non-null object
                     2 fileNo 139193 non-null object
                     3 formType 139251 non-null object
                     4 filedAt 139251 non-null datetime64[ns, US/Eastern]
                     5 periodOfReport 136544 non-null object
                     6 entities 139251 non-null object
                     7 tableId 139251 non-null object
                     8 firstEntityCik 139251 non-null object
                     9 filedAtYear 139251 non-null int32
                     10 filedAtMonth 139251 non-null int32
                     11 filedAtQtr 139251 non-null int64
                     12 filedAtDayOfWeek 139251 non-null object
                     13 filedAtClass 139251 non-null object
                     14 periodOfReportYear 136544 non-null object
                     15 periodOfReportMonth 136544 non-null object
                     16 year 139192 non-null float64
                     17 auditFees 137762 non-null float64
                     18 auditRelatedFees 88035 non-null float64
                     19 taxFees 99921 non-null float64
                     20 allOtherFees 61631 non-null float64
                     21 totalFees 113052 non-null float64
                     22 auditor 139251 non-null object
                     23 valueMultiplier 139251 non-null int64
                    dtypes: datetime64[ns, US/Eastern](1), float64(6), int32(2), int64(2), object(13)
                    memory usage: 24.4+ MB
                    def plot_timeseries(
                        ts,
                        title,
                        keys=["count"],
                        y_label=None,
                        ylog_scale=False,
                        yvalue_multiplier=1,
                        yvalue_multiplier_name=None,
                        ax=None,
                        yticks_step=2,
                    ):
                        fig = None
                        if ax is None:
                            fig, ax = plt.subplots(figsize=(4, 2.5))
                        else:
                            fig = ax.figure

                        # Auto y-label with unit
                        if y_label is None:
                            y_label = keys[0] if len(keys) == 1 else "Value"
                        if yvalue_multiplier == "auto":
                            yvalue_multiplier = 1
                            max_value = ts[keys].max().max()
                            if max_value > 1_000_000_000_000:
                                yvalue_multiplier = 1_000_000_000_000
                            elif max_value > 1_000_000_000:
                                yvalue_multiplier = 1_000_000_000
                            elif max_value > 1_000_000:
                                yvalue_multiplier = 1_000_000
                            elif max_value > 1_000:
                                yvalue_multiplier = 1_000

                        if yvalue_multiplier != 1:
                            if yvalue_multiplier_name is not None:
                                y_label = f"{y_label} ({yvalue_multiplier_name})"
                            elif yvalue_multiplier == 1_000:
                                y_label += " (Thousands)"
                            elif yvalue_multiplier == 1_000_000:
                                y_label += " (Millions)"
                            elif yvalue_multiplier == 1_000_000_000:
                                y_label += " (Billions)"
                            elif yvalue_multiplier == 1_000_000_000_000:
                                y_label += " (Trillions)"
                            else:
                                y_label += f" (÷{yvalue_multiplier:,})"

                        # Apply multiplier
                        ts_plot = ts.copy()
                        ts_plot[keys] = ts_plot[keys] / yvalue_multiplier

                        # Plot each key
                        for key in keys:
                            ts_plot[key].plot(ax=ax, label=key.capitalize())

                        if ylog_scale:
                            ax.set_yscale("log")

                        ax.set_title(title)
                        ax.set_xlabel("Year")
                        ax.set_ylabel(y_label)
                        ax.set_xticks(np.arange(min_year, max_year + 1, yticks_step))
                        ax.grid(axis="x")
                        ax.set_axisbelow(True)
                        # ax.yaxis.set_major_formatter(mtick.StrMethodFormatter("{x:,.0f}"))

                        # Add vertical lines at each year, height = max across all keys
                        max_vals = ts_plot[keys].max(axis=1)
                        for year in ts_plot.index:
                            val = max_vals.get(year, 0)
                            if not pd.isna(val):
                                ax.vlines(year, 0, val, linestyles=":", colors="grey", alpha=0.5, lw=1)

                        for label in ax.get_xticklabels():
                            label.set_rotation(45)
                        if len(keys) > 1:
                            ax.legend()

                        plt.tight_layout()
                        return fig, ax


                    filing_counts = (
                        structured_data.drop_duplicates(subset=["accessionNo"])
                        .groupby(["filedAtYear"])
                        .size()
                        .to_frame(name="count")
                    )

                    fig, ax = plot_timeseries(
                        filing_counts,
                        title=f"Processed {form_name} filings per Year ({min_year} - {max_year})",
                    )
                    form_counts_by_type_and_year = (
                        structured_data.drop_duplicates(subset=["accessionNo"])
                        .groupby(["filedAtYear", "formType"])
                        .size()
                        .to_frame(name="count")
                        .unstack(fill_value=0)
                    )


                    print(f"{form_name} counts from {min_year} to {max_year}.")
                    form_counts_by_type_and_year
                    Form DEF 14A counts from 2001 to 2025.
                    Out[11]:
                    count
                    formTypeDEF 14A
                    filedAtYear
                    200179
                    2002200
                    2003863
                    20042729
                    20053320
                    20063619
                    20073702
                    20084005
                    20093825
                    20103853
                    20113769
                    20123624
                    20133321
                    20143496
                    20153000
                    20163340
                    20172636
                    20182676
                    20192476
                    20202469
                    20212462
                    20222719
                    20232937
                    20242846
                    20251263
                    counts_qtr_yr_piv = (
                        structured_data.groupby(["filedAtYear", "filedAtQtr"]).size().unstack().fillna(0)
                    ).astype(int)

                    print(f"{form_name} counts by quarter from {min_year} to {max_year}.")
                    counts_qtr_yr_piv.T
                    Form DEF 14A counts by quarter from 2001 to 2025.
                    Out[12]:
                    filedAtYear2001200220032004200520062007200820092010...2016201720182019202020212022202320242025
                    filedAtQtr
                    115483581676186021961782216222002333...2046195114851444120912351255136312591340
                    2391047352795347436954147444340603966...3607253129272748289028293227339134341196
                    31626183585715734777753720741...5214195374004444205015474810
                    4935253512694745822752781757...5554064273854144384785935530

                    4 rows × 25 columns

                    plt.figure(figsize=(8, 3))

                    sns.heatmap(
                        counts_qtr_yr_piv.T,
                        annot=True, # Display the cell values
                        fmt="d", # Integer formatting
                        cmap="magma", # Color map
                        cbar_kws={"label": "Count"}, # Colorbar label
                        mask=counts_qtr_yr_piv.T == 0, # Mask the cells with value 0
                        cbar=False,
                        annot_kws={"fontsize": 7},
                    )
                    plt.grid(False)
                    plt.title(f"{form_name} Counts by Quarter {min_year} to {max_year}")
                    plt.xlabel("Year")
                    plt.ylabel("Quarter")
                    plt.tight_layout()
                    plt.show()
                    counts_qtr_yr = counts_qtr_yr_piv.stack().reset_index(name="count")

                    fig, ax = plt.subplots(figsize=(7, 2.5))
                    counts_qtr_yr_piv.plot(kind="bar", ax=ax, legend=True)
                    ax.legend(title="Quarter", loc="upper right", bbox_to_anchor=(1.15, 1))
                    ax.set_title(f"Number of {form_name} Filings per Quarter\n({min_year}-{max_year})")
                    ax.set_xlabel("Year")
                    ax.set_ylabel(f"Number of\n{form_name} Filings")
                    ax.yaxis.set_major_formatter(mtick.StrMethodFormatter("{x:,.0f}"))
                    ax.grid(axis="x")
                    ax.set_axisbelow(True)
                    plt.tight_layout()
                    plt.show()
                    counts_month_yr_piv = (
                        structured_data.groupby(["filedAtYear", "filedAtMonth"]).size().unstack().fillna(0)
                    ).astype(int)

                    plt.figure(figsize=(7, 5))
                    sns.heatmap(
                        counts_month_yr_piv,
                        annot=True,
                        fmt="d",
                        cmap="magma",
                        cbar_kws={"label": "Count"},
                        mask=counts_month_yr_piv == 0,
                        cbar=False,
                        annot_kws={"size": 7},
                    )
                    # convert x-labels to month names: 1 => Jan, 2 => Feb, etc.
                    plt.xticks(
                        ticks=np.arange(0.5, 12.5, 1),
                        labels=[pd.to_datetime(str(i), format="%m").strftime("%b") for i in range(1, 13)],
                    )
                    plt.grid(False)
                    plt.title(f"{form_name} Counts by Month ({min_year} - {max_year})")
                    plt.xlabel("")
                    plt.ylabel("Year")
                    plt.tight_layout()
                    plt.show()
                    print(
                        f"Descriptive statistics for {form_name} filing counts by month from {min_year} to {max_year}."
                    )
                    month_stats = (
                        counts_month_yr_piv.loc[2004:]
                        .describe(percentiles=[0.025, 0.975])
                        .round(0)
                        .astype(int)
                    )
                    month_stats
                    Descriptive statistics for Form DEF 14A filing counts by month from 2001 to 2025.
                    Out[16]:
                    filedAtMonth123456789101112
                    count222222222222222222222222
                    mean20010814762779329225207159196259133176
                    std604030956713271695166844562
                    min118501005119600000000
                    2.5%120521019163110974705667894856
                    50%19410615382752308226215168202272130185
                    97.5%30517818683598567305308224285364213254
                    max30618718933746624311322231289375225257
                    def plot_box_plot_as_line(
                        data: pd.DataFrame,
                        x_months=True,
                        title="",
                        x_label="",
                        x_pos_mean_label=2,
                        pos_labels=None,
                        pos_high_low=None,
                        y_label="",
                        y_formatter=lambda x, p: "{:.0f}".format(int(x) / 1000),
                        show_high_low_labels=True,
                        show_inline_labels=True,
                        show_bands=True,
                        figsize=(4, 2.5),
                        line_source="mean",
                    ):
                        fig, ax = plt.subplots(figsize=figsize)

                        line_to_plot = data[line_source]
                        lower_label = "2.5%"
                        upper_label = "97.5%"
                        lower = data[lower_label]
                        upper = data[upper_label]

                        line_to_plot.plot(ax=ax)

                        if show_bands:
                            ax.fill_between(line_to_plot.index, lower, upper, alpha=0.2)

                        if x_months:
                            ax.set_xlim(0.5, 12.5)
                            ax.set_xticks(range(1, 13))
                            ax.set_xticklabels(["J", "F", "M", "A", "M", "J", "J", "A", "S", "O", "N", "D"])

                        ax.yaxis.set_major_formatter(mtick.FuncFormatter(y_formatter))
                        ax.set_ylabel(y_label)
                        ax.set_xlabel(x_label)
                        ax.set_title(title)

                        ymin, ymax = ax.get_ylim()
                        y_scale = ymax - ymin

                        max_x = int(line_to_plot.idxmax())
                        max_y = line_to_plot.max()
                        min_x = int(line_to_plot.idxmin())
                        min_y = line_to_plot.min()

                        ax.axvline(
                            max_x,
                            ymin=0,
                            ymax=((max_y - ymin) / (ymax - ymin)),
                            linestyle="dashed",
                            color="tab:blue",
                            alpha=0.5,
                        )
                        ax.scatter(max_x, max_y, color="tab:blue", s=10)
                        ax.axvline(
                            min_x,
                            ymin=0,
                            ymax=((min_y - ymin) / (ymax - ymin)),
                            linestyle="dashed",
                            color="tab:blue",
                            alpha=0.5,
                        )
                        ax.scatter(min_x, min_y, color="tab:blue", s=10)

                        x_pos_mean_label_int = int(x_pos_mean_label)
                        if show_inline_labels:
                            mean_x = x_pos_mean_label
                            mean_y = line_to_plot.iloc[x_pos_mean_label_int] * 1.02
                            upper_x = x_pos_mean_label
                            upper_y = upper.iloc[x_pos_mean_label_int]
                            lower_x = x_pos_mean_label
                            lower_y = lower.iloc[x_pos_mean_label_int] * 0.95

                            if pos_labels:
                                mean_x = pos_labels["mean"]["x"]
                                mean_y = pos_labels["mean"]["y"]
                                upper_x = pos_labels["upper"]["x"]
                                upper_y = pos_labels["upper"]["y"]
                                lower_x = pos_labels["lower"]["x"]
                                lower_y = pos_labels["lower"]["y"]

                            ax.text(mean_x, mean_y, "Mean", color="tab:blue", fontsize=8)
                            ax.text(upper_x, upper_y, upper_label, color="tab:blue", fontsize=8)
                            ax.text(lower_x, lower_y, lower_label, color="tab:blue", fontsize=8)

                        if show_high_low_labels:
                            high_x_origin = max_x
                            high_y_origin = max_y
                            high_x_label = high_x_origin + 0.5
                            high_y_label = high_y_origin + 0.1 * y_scale
                            if pos_high_low:
                                high_x_label = pos_high_low["high"]["x"]
                                high_y_label = pos_high_low["high"]["y"]
                            ax.annotate(
                                "High",
                                (high_x_origin, high_y_origin),
                                xytext=(high_x_label, high_y_label),
                                arrowprops=dict(facecolor="black", arrowstyle="->"),
                            )

                            low_x_origin = min_x * 1.01
                            low_y_origin = min_y
                            low_x_label = low_x_origin + 1.5
                            low_y_label = low_y_origin - 0.1 * y_scale
                            if pos_high_low:
                                low_x_label = pos_high_low["low"]["x"]
                                low_y_label = pos_high_low["low"]["y"]
                            ax.annotate(
                                "Low",
                                (low_x_origin, low_y_origin),
                                xytext=(low_x_label, low_y_label),
                                arrowprops=dict(facecolor="black", arrowstyle="->"),
                            )

                        ax.grid(axis="x")
                        ax.set_axisbelow(True)

                        plt.tight_layout()
                        plt.show()


                    plot_box_plot_as_line(
                        data=month_stats.T,
                        title=f"Descriptive Statistics for {form_name} Filings by Month\n({min_year} - {max_year})",
                        x_label="Month",
                        y_label="Number of\n{form_name} Filings",
                        y_formatter=lambda x, p: "{:.0f}".format(int(x)),
                        x_pos_mean_label=2,
                    )
                    fig, ax = plt.subplots(1, 1, figsize=(4, 2))

                    cnt = 0

                    data = (
                        structured_data.groupby(["filedAtYear", "filedAtMonth"])
                        .size()
                        .unstack()
                        .fillna(0)
                        .reindex(columns=range(1, 13), fill_value=0) # ensure all month are included
                    )

                    # if data.sum().sum() < 100:
                    # continue
                    try:
                        data.boxplot(
                            ax=ax,
                            grid=False,
                            showfliers=False,
                            flierprops=dict(marker="o", markersize=3),
                            patch_artist=True,
                            boxprops=dict(facecolor="white", color="tab:blue"),
                            showmeans=True,
                            meanline=True,
                            meanprops={"color": "tab:blue", "linestyle": ":"},
                            medianprops={"color": "black"},
                            capprops={"color": "none"},
                        )

                        ax.set_xlabel("")
                        ax.set_ylabel(f"Form {form_name} Count")
                        xticklabels = [
                            pd.to_datetime(str(x), format="%m").strftime("%b") for x in range(1, 13)
                        ]
                        ax.set_xticklabels(xticklabels)
                        ax.tick_params(axis="x", rotation=45)
                    except Exception as e:
                        print(f"Error: {e}")


                    fig.suptitle(f"{form_name} Filings by Month\n({min_year} - {max_year})")
                    plt.tight_layout()
                    plt.show()
                    counts_dayOfWeek = (
                        structured_data.drop_duplicates(subset=["accessionNo"])
                        .groupby(["filedAtDayOfWeek"])
                        .size()
                        .to_frame(name="Count")
                    ).rename_axis("Day of the Week")
                    counts_dayOfWeek["Pct"] = (
                        counts_dayOfWeek["Count"].astype(int) / counts_dayOfWeek["Count"].astype(int).sum()
                    ).map("{:.0%}".format)
                    counts_dayOfWeek["Count"] = counts_dayOfWeek["Count"].map(lambda x: f"{x:,}")

                    print(f"{form_name} filing counts by day of the week ({min_year} - {max_year}).")
                    counts_dayOfWeek.loc[["Monday", "Tuesday", "Wednesday", "Thursday", "Friday"]]
                    Form DEF 14A filing counts by day of the week (2001 - 2025).
                    Out[19]:
                    CountPct
                    Day of the Week
                    Monday13,28019%
                    Tuesday11,06116%
                    Wednesday11,64117%
                    Thursday13,35619%
                    Friday19,89029%

                    Deduplicate Records

                    Audit fee tables in Form DEF 14A filings typically include values for multiple years. These are typically presented in one column per year.

                    Because we extract all data from each of the audit fee tables the same data likely appears twice.

                    To illustrate this, let's list the audit fee records from TESLA DEF 14A filings for the years 2015 to 2018.

                    structured_data[
                        (structured_data["firstEntityCik"] == "1318605")
                        & (structured_data["filedAtYear"].isin(range(2016, 2020)))
                    ]
                    Out[20]:
                    idaccessionNofileNoformTypefiledAtperiodOfReportentitiestableIdfirstEntityCikfiledAtYear...periodOfReportYearperiodOfReportMonthyearauditFeesauditRelatedFeestaxFeesallOtherFeestotalFeesauditorvalueMultiplier
                    90925dcfe557d7b36025fb47997b38c2dc46d0001193125-16-543341001-34756DEF 14A2016-04-15 17:09:07-04:002016-05-31[{'cik': '1318605', 'ticker': 'TSLA', 'company...0001193125-16-543341_8413186052016...2016052014.02969000.06000.010000.02000.02987000.0PricewaterhouseCoopers LLP1000
                    90926dcfe557d7b36025fb47997b38c2dc46d0001193125-16-543341001-34756DEF 14A2016-04-15 17:09:07-04:002016-05-31[{'cik': '1318605', 'ticker': 'TSLA', 'company...0001193125-16-543341_8413186052016...2016052015.04237000.00.00.02000.04239000.0PricewaterhouseCoopers LLP1000
                    102657ef8759b2cbf14f10e14349ed18353bd70001564590-18-009339001-34756DEF 14A2018-04-26 17:00:09-04:002018-06-05[{'cik': '1318605', 'ticker': 'TSLA', 'company...0001564590-18-009339_7413186052018...2018062016.08436000.00.031000.02000.08469000.0PricewaterhouseCoopers LLP1000
                    102658ef8759b2cbf14f10e14349ed18353bd70001564590-18-009339001-34756DEF 14A2018-04-26 17:00:09-04:002018-06-05[{'cik': '1318605', 'ticker': 'TSLA', 'company...0001564590-18-009339_7413186052018...2018062017.010613000.0240000.064000.02000.010919000.0PricewaterhouseCoopers LLP1000
                    1084460ff2241331a95eba0ac6d12597b19c480001564590-19-014268001-34756DEF 14A2019-04-30 16:05:27-04:002019-06-11[{'cik': '1318605', 'ticker': 'TSLA', 'company...0001564590-19-014268_12513186052019...2019062017.010613000.0240000.064000.02000.010919000.0PricewaterhouseCoopers LLP1000
                    1084470ff2241331a95eba0ac6d12597b19c480001564590-19-014268001-34756DEF 14A2019-04-30 16:05:27-04:002019-06-11[{'cik': '1318605', 'ticker': 'TSLA', 'company...0001564590-19-014268_12513186052019...2019062018.012088000.0160000.0514000.03000.012766000.0PricewaterhouseCoopers LLP1000

                    6 rows × 24 columns

                    Indeed, there multiple rows contain the same extracted data, e.g. for 2017, from DEF 14As filed in consecutive years.

                    Next, lets deduplicate the records and only keep the records for a given year coming from the most recent filings. We use the fileNo value assigned by the SEC to identify companies, in this case '001-34756' for TESLA.

                    Now, let's apply this to the full dataset to only keep the most recent set of records reported per company for each year.

                    structured_data["rank"] = structured_data.groupby(["year", "firstEntityCik"])[
                        "filedAt"
                    ].rank(method="dense", ascending=False)

                    # Keep only the most recent records (rank 1)
                    structured_data = (
                        structured_data[structured_data["rank"] == 1]
                        .drop(columns="rank")
                        .reset_index(drop=True)
                    )
                    structured_data.info()
                    structured_data.head(5)
                    <class 'pandas.core.frame.DataFrame'>
                    RangeIndex: 83520 entries, 0 to 83519
                    Data columns (total 24 columns):
                     # Column Non-Null Count Dtype
                    --- ------ -------------- -----
                     0 id 83520 non-null object
                     1 accessionNo 83520 non-null object
                     2 fileNo 83462 non-null object
                     3 formType 83520 non-null object
                     4 filedAt 83520 non-null datetime64[ns, US/Eastern]
                     5 periodOfReport 81996 non-null object
                     6 entities 83520 non-null object
                     7 tableId 83520 non-null object
                     8 firstEntityCik 83520 non-null object
                     9 filedAtYear 83520 non-null int32
                     10 filedAtMonth 83520 non-null int32
                     11 filedAtQtr 83520 non-null int64
                     12 filedAtDayOfWeek 83520 non-null object
                     13 filedAtClass 83520 non-null object
                     14 periodOfReportYear 81996 non-null object
                     15 periodOfReportMonth 81996 non-null object
                     16 year 83520 non-null float64
                     17 auditFees 82440 non-null float64
                     18 auditRelatedFees 52136 non-null float64
                     19 taxFees 59345 non-null float64
                     20 allOtherFees 36566 non-null float64
                     21 totalFees 67660 non-null float64
                     22 auditor 83520 non-null object
                     23 valueMultiplier 83520 non-null int64
                    dtypes: datetime64[ns, US/Eastern](1), float64(6), int32(2), int64(2), object(13)
                    memory usage: 14.7+ MB
                    Out[21]:
                    idaccessionNofileNoformTypefiledAtperiodOfReportentitiestableIdfirstEntityCikfiledAtYear...periodOfReportYearperiodOfReportMonthyearauditFeesauditRelatedFeestaxFeesallOtherFeestotalFeesauditorvalueMultiplier
                    0fa41cba0dcce2dc28bbafb8e9c0a02b50000912057-01-007088001-00768DEF 14A2001-03-02 00:00:00-05:002001-04-11[{'cik': '18230', 'ticker': 'CAT', 'companyNam...0000912057-01-007088_10182302001...2001042000.06700000.0NaNNaN16200000.0NaN1000000
                    108ea344d14d1393d30248a8d448bca590000064463-01-500011000-06890DEF 14A2001-03-07 00:00:00-05:002001-04-24[{'cik': '64463', 'ticker': 'SLNH', 'companyNa...0000064463-01-500011_6644632001...2001042000.095415.0NaNNaN75645.0171060.0PricewaterhouseCoopers LLP1
                    2f7cfd8bdda5be061111e63f5090be67e0000950152-01-500225000-13270DEF 14A2001-03-09 00:00:00-05:002001-04-24[{'cik': '746481', 'companyName': 'UNB CORP/OH...0000950152-01-500225_247464812001...2001042000.067500.0NaNNaN163628.0NaNCrowe, Chizek and Company1
                    371e870d51d55da9c79c9f2f6fd2bb56a0000891554-01-501345001-09026DEF 14A2001-03-12 00:00:00-05:002001-04-26[{'cik': '714154', 'companyName': 'COMPAQ COMP...0000891554-01-501345_867141542001...2001042000.05600000.03200000.07400000.0NaN16200000.01
                    4dc18b46a1680a1925046a541f83b5ca40000950109-01-500193001-07410DEF 14A2001-03-12 00:00:00-05:002001-04-17[{'cik': '64782', 'companyName': 'MELLON FINAN...0000950109-01-500193_60647822001...2001042000.02553000.0NaN584000.09857000.012994000.0KPMG LLP1000

                    5 rows × 24 columns

                    Outlier Removal

                    analysis_df = structured_data.copy()
                    analysis_df = analysis_df[analysis_df["year"].between(2002, 2026)]

                    # Calculate percentiles per year
                    percentiles = analysis_df.groupby("year")["auditFees"].transform

                    analysis_df["audit_fees_5th"] = percentiles(lambda x: x.quantile(0.05))
                    analysis_df["audit_fees_95th"] = percentiles(lambda x: x.quantile(0.95))
                    print(f"5th percentile (min): {analysis_df['audit_fees_5th'].min()}")
                    print(f"95th percentile (max): {analysis_df['audit_fees_95th'].max()}")

                    # Filter rows within 5th and 95th percentile for their year
                    analysis_df = analysis_df[
                        (analysis_df["auditFees"] >= analysis_df["audit_fees_5th"])
                        & (analysis_df["auditFees"] <= analysis_df["audit_fees_95th"])
                    ]

                    # Optional: drop temporary columns if no longer needed
                    analysis_df.drop(columns=["audit_fees_5th", "audit_fees_95th"], inplace=True)
                    5th percentile (min): 34470.0
                    95th percentile (max): 13011255.399999999
                    /var/folders/83/7b5245js685cr2ybfzjf9yq00000gn/T/ipykernel_56145/1805469249.py:19: SettingWithCopyWarning:
                    A value is trying to be set on a copy of a slice from a DataFrame

                    See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
                      analysis_df.drop(columns=["audit_fees_5th", "audit_fees_95th"], inplace=True)

                    Audit Fees

                    def plot_hist(
                        data,
                        title=None,
                        x_label=None,
                        y_label=None,
                        log_scale=False,
                        xlog_scale=False,
                        ylog_scale=False,
                        bins=None,
                        xticks=None,
                        use_xticks_formatter=False,
                        use_yticks_formatter=False,
                        value_multiplier=1,
                        value_range=None,
                        ax=None,
                        integer_bins=False,
                        show_bound_lines=False,
                    ):
                        if log_scale:
                            xlog_scale = True
                            ylog_scale = True

                        data = np.array(data)

                        # Filter
                        if value_range is not None:
                            min_val, max_val = value_range
                            data = data[(data >= min_val) & (data <= max_val)]

                        # Auto xvalue_multiplier
                        if value_multiplier == "auto":
                            value_multiplier = 1
                            max_value = np.max(data)
                            if max_value > 1_000_000_000_000:
                                value_multiplier = 1_000_000_000_000
                            elif max_value > 1_000_000_000:
                                value_multiplier = 1_000_000_000
                            elif max_value > 1_000_000:
                                value_multiplier = 1_000_000
                            elif max_value > 1_000:
                                value_multiplier = 1_000

                        # Apply multiplier
                        data = data / value_multiplier

                        # Label unit
                        if value_multiplier != 1:
                            if x_label is None:
                                x_label = "Value"
                            if value_multiplier == 1_000:
                                unit = " (Thousands)"
                            elif value_multiplier == 1_000_000:
                                unit = " (Millions)"
                            elif value_multiplier == 1_000_000_000:
                                unit = " (Billions)"
                            elif value_multiplier == 1_000_000_000_000:
                                unit = " (Trillion)"
                            else:
                                unit = f" (÷{value_multiplier:,})"
                            x_label += unit

                        # Create figure/ax if not given
                        fig = None
                        if ax is None:
                            fig, ax = plt.subplots(figsize=(3, 2))

                        # Bins
                        if bins is not None and isinstance(bins, int):
                            data_range = data.max() - data.min()
                            if data_range < bins and integer_bins:
                                bins = np.arange(data.min() - 0.5, data.max() + 1.5, 1)
                        if bins is None:
                            if integer_bins:
                                min_val = np.floor(data.min())
                                max_val = np.ceil(data.max())
                                bin_edges = np.arange(min_val - 0.5, max_val + 1.5, 1)
                            elif xlog_scale:
                                bin_edges = np.logspace(np.log10(data.min()), np.log10(data.max()), num=20)
                            else:
                                bin_edges = 20
                        else:
                            bin_edges = bins

                        if value_multiplier != 1 and isinstance(bin_edges, np.ndarray):
                            bin_edges = bin_edges / value_multiplier

                        ax.hist(
                            data,
                            bins=bin_edges,
                            color="steelblue",
                            edgecolor="black",
                            linewidth=0.5,
                        )

                        if xticks is not None:
                            ax.set_xticks(xticks)
                        if xlog_scale:
                            ax.set_xscale("log")
                            use_xticks_formatter = True
                        if ylog_scale:
                            ax.set_yscale("log")
                            use_yticks_formatter = True
                        if use_xticks_formatter:
                            ax.xaxis.set_major_formatter(mtick.StrMethodFormatter("{x:,.0f}"))
                            ax.tick_params(axis="x", rotation=45)
                        if use_yticks_formatter:
                            ax.yaxis.set_major_formatter(mtick.StrMethodFormatter("{x:,.0f}"))

                        ax.set_title(title)
                        ax.set_xlabel(x_label)
                        ax.set_ylabel(y_label)

                        if show_bound_lines:
                            ax.axvline(x=min_val / value_multiplier, color="grey", linestyle="--")
                            ax.axvline(x=max_val / value_multiplier, color="grey", linestyle="--")

                        return fig, ax


                    def format_with_order_of_magnitude(value, precision=2):
                    """
                    Format a large number with appropriate order of magnitude and given precision.
                    Examples:
                    1_523_000_234 with prec=2 -> "1.52 Billion"
                    15_300_000 with prec=1 -> "15.3 Million"
                    """
                        abs_val = abs(value)
                        if abs_val >= 1_000_000_000_000:
                            return f"{value / 1_000_000_000_000:.{precision}f} Trillion"
                        elif abs_val >= 1_000_000_000:
                            return f"{value / 1_000_000_000:.{precision}f} Billion"
                        elif abs_val >= 1_000_000:
                            return f"{value / 1_000_000:.{precision}f} Million"
                        elif abs_val >= 1_000:
                            return f"{value / 1_000:.{precision}f} Thousand"
                        else:
                            return f"{value:.{precision}f}"


                    def plot_split_histograms(
                        data,
                        value_splits,
                        x_label="Value",
                        y_label="Count",
                        title="Histogram",
                        figsize=(2.5, 2),
                        force_xticks_at_bounds=True,
                        **kwargs,
                    ):
                        import matplotlib.pyplot as plt
                        import numpy as np

                        value_splits = sorted(value_splits)
                        min_val = min(data)
                        max_val = max(data)
                        ranges = (
                            [(min_val, value_splits[0])]
                            + [(value_splits[i], value_splits[i + 1]) for i in range(len(value_splits) - 1)]
                            + [(value_splits[-1], max_val)]
                        )

                        fig, axes = plt.subplots(
                            1,
                            len(ranges),
                            figsize=(figsize[0] * len(ranges), figsize[1]),
                            constrained_layout=True,
                        )

                        fig.suptitle(title)

                        if len(ranges) == 1:
                            axes = [axes]

                        for i, (low, high) in enumerate(ranges):
                            xticks = None
                            if force_xticks_at_bounds:
                                n_ticks = 5
                                xticks = np.linspace(low, high, n_ticks)
                                xticks = np.unique(np.append(xticks, [low, high]))
                                if kwargs.get("integer_bins", False):
                                    xticks = np.unique(np.round(xticks).astype(int))

                            _, ax = plot_hist(
                                data,
                                x_label=x_label,
                                y_label=y_label,
                                value_range=(low, high),
                                # xticks=xticks,
                                use_xticks_formatter=kwargs.get("use_xticks_formatter", False),
                                ax=axes[i],
                                show_bound_lines=True,
                                **kwargs,
                            )

                            low_string = format_with_order_of_magnitude(low)
                            high_string = format_with_order_of_magnitude(high)
                            ax.set_title(
                                f"{low_string} - {high_string}",
                                fontsize=8,
                            )

                            # ax.axvline(x=low, color="red", linestyle="--")
                            # ax.axvline(x=high, color="red", linestyle="--")

                        plt.show()


                    def basic_stats_table(
                        data, columns: list[str] = None, number_formatter: str = "{x:,.2f}"
                    ) -> pd.DataFrame:
                        # Handle Series input by converting to single-column DataFrame
                        if isinstance(data, pd.Series):
                            data = data.to_frame()
                            columns = [data.columns[0]]
                        elif isinstance(data, pd.DataFrame):
                            if columns is None:
                                raise ValueError(
                                    "For DataFrame input, please provide a list of column names."
                                )
                        else:
                            raise TypeError("Input must be a pandas DataFrame or Series.")

                        summary_data = {}

                        for col in columns:
                            series = data[col].dropna()
                            summary_data[col] = {
                                "Samples": len(series),
                                "Mean": number_formatter.format(x=series.mean()),
                                "Median": number_formatter.format(x=series.median()),
                                "Std.": number_formatter.format(x=series.std()),
                                "25%": number_formatter.format(x=series.quantile(0.25)),
                                "75%": number_formatter.format(x=series.quantile(0.75)),
                                "Min": number_formatter.format(x=series.min()),
                                "Max": number_formatter.format(x=series.max()),
                                "Skewness": round(skew(series), 2),
                                "Kurtosis": round(kurtosis(series, fisher=False), 2),
                            }

                        return pd.DataFrame(summary_data).T
                    data = analysis_df["auditFees"].dropna()

                    plot_split_histograms(
                        data,
                        value_splits=[5_000_000],
                        x_label="Audit Fees in USD",
                        y_label="Count",
                        title=f"Audit Fees Distribution",
                        value_multiplier="auto",
                    )

                    basic_stats_table(data).T
                    Out[24]:
                    auditFees
                    Samples73616
                    Mean1,264,186.65
                    Median731,850.00
                    Std.1,466,846.87
                    25%270,000.00
                    75%1,660,293.50
                    Min34,500.00
                    Max13,000,000.00
                    Skewness2.14
                    Kurtosis8.47
                    # Group by year and calculate stats
                    audit_fees = analysis_df.groupby("year")["auditFees"].agg(
                        min="min", max="max", mean="mean", median="median"
                    )

                    fig, axes = plt.subplots(nrows=3, figsize=(3.5, 5))
                    fig.suptitle(f"Audit Fees\nreported in {form_name} Filings ({min_year} - {max_year})")
                    axes = axes.flatten()
                    for ax, key in zip(axes, ["mean", "median", "max"]):
                        pretty_key = key.capitalize()
                        plot_timeseries(
                            ts=audit_fees,
                            title=f"{pretty_key}",
                            keys=[key],
                            ylog_scale=False,
                            yvalue_multiplier=1_000_000,
                            ax=ax,
                            yticks_step=2,
                        )

                    Audit-related fees

                    data = analysis_df["auditRelatedFees"].dropna()

                    plot_split_histograms(
                        data,
                        value_splits=[100_000, 1_000_000],
                        x_label="Audit-related fees in USD",
                        y_label="Count",
                        title=f"Audit-related fees Distribution",
                        value_multiplier="auto",
                    )

                    basic_stats_table(data).T
                    Out[26]:
                    auditRelatedFees
                    Samples45441
                    Mean174,159.18
                    Median45,000.00
                    Std.430,556.51
                    25%14,000.00
                    75%155,020.00
                    Min0.00
                    Max14,714,000.00
                    Skewness8.3
                    Kurtosis125.1
                    # Group by year and calculate stats
                    audit_related_fees = (
                        analysis_df[analysis_df["year"].between(2000, 2026)]
                        .groupby("year")["auditRelatedFees"]
                        .agg(min="min", max="max", mean="mean", median="median")
                    )

                    fig, axes = plt.subplots(nrows=3, figsize=(3.5, 5))
                    fig.suptitle(
                        f"Audit-related fees\nreported in {form_name} Filings ({min_year} - {max_year})"
                    )
                    axes = axes.flatten()
                    for ax, key in zip(axes, ["mean", "median", "max"]):
                        pretty_key = key.capitalize()
                        plot_timeseries(
                            ts=audit_related_fees,
                            title=f"{pretty_key}",
                            keys=[key],
                            ylog_scale=False,
                            yvalue_multiplier=1_000_000,
                            ax=ax,
                            yticks_step=2,
                        )

                    Tax Fees

                    data = analysis_df["taxFees"].dropna()
                    data = data[data >= 0]

                    plot_split_histograms(
                        data,
                        value_splits=[100_000, 1_000_000],
                        x_label="Tax Fees in USD",
                        y_label="Count",
                        title=f"Tax Fees Distribution",
                        value_multiplier="auto",
                    )

                    basic_stats_table(data).T
                    Out[28]:
                    taxFees
                    Samples51969
                    Mean218,435.22
                    Median63,000.00
                    Std.464,899.76
                    25%18,200.00
                    75%215,117.00
                    Min0.00
                    Max13,952,000.00
                    Skewness6.99
                    Kurtosis99.28
                    # Group by year and calculate stats
                    tax_fees = (
                        analysis_df[analysis_df["year"].between(2000, 2026)]
                        .groupby("year")["taxFees"]
                        .agg(min="min", max="max", mean="mean", median="median")
                    )

                    fig, axes = plt.subplots(nrows=3, figsize=(3.5, 5))
                    fig.suptitle(f"Tax Fees\nreported in {form_name} Filings ({min_year} - {max_year})")
                    axes = axes.flatten()
                    for ax, key in zip(axes, ["mean", "median", "max"]):
                        pretty_key = key.capitalize()
                        plot_timeseries(
                            ts=tax_fees,
                            title=f"{pretty_key}",
                            keys=[key],
                            ylog_scale=False,
                            yvalue_multiplier=1_000_000,
                            ax=ax,
                            yticks_step=2,
                        )

                    All other fees

                    data = analysis_df["allOtherFees"].dropna()
                    data = data[data >= 0]

                    plot_split_histograms(
                        data,
                        value_splits=[100_000, 1_000_000],
                        x_label="All other fees in USD",
                        y_label="Count",
                        title=f"All other fees Distribution",
                        value_multiplier="auto",
                    )

                    basic_stats_table(data).T
                    Out[30]:
                    allOtherFees
                    Samples31230
                    Mean55,931.24
                    Median3,000.00
                    Std.316,426.37
                    25%0.00
                    75%23,402.25
                    Min0.00
                    Max19,624,000.00
                    Skewness27.79
                    Kurtosis1195.41

                    Evolution and comparison of fee types

                    fix, axes = plt.subplots(3, 1, figsize=(4, 6))
                    fig.suptitle(f"Fee by type reported in {form_name} Filings (2002 - 2026)")


                    for ax, (name, method, order_of_magnitude) in zip(
                        axes,
                        [
                            ("Average", "mean", "million"),
                            ("Median", "median", "million"),
                            ("Sum", "sum", "billion"),
                        ],
                    ):

                        values_by_year = (
                            analysis_df.groupby("year")
                            .agg(
                                audit_fees=("auditFees", method),
                                audit_related_fees=("auditRelatedFees", method),
                                tax_fees=("taxFees", method),
                                all_other_fees=("allOtherFees", method),
                            )
                            .reset_index()
                        )

                        values_by_year["year"] = values_by_year["year"].astype(int)

                        stacked_values = values_by_year.copy()
                        multiplier = 1_000_000 if order_of_magnitude == "million" else 1_000_000_000
                        for key in ["audit_fees", "audit_related_fees", "tax_fees", "all_other_fees"]:
                            stacked_values[key] = stacked_values[key] / multiplier

                        ax.stackplot(
                            stacked_values["year"].astype(str),
                            *[
                                stacked_values[ft]
                                for ft in ["audit_fees", "audit_related_fees", "tax_fees", "all_other_fees"]
                            ],
                            labels=["Audit Fees", "Audit-related Fees", "Tax Fees", "All Other Fees"],
                            alpha=0.8,
                        )
                        handles, labels = ax.get_legend_handles_labels()
                        ax.legend(
                            list(reversed(handles)),
                            list(reversed(labels)),
                            title="Fee Type",
                            labelspacing=0.15,
                        )

                        # ax.set_title(f"{name} of fees by type reported in {form_name} Filings (2002 - 2026)")
                        ax.set_title(f"{name}")
                        ax.set_ylabel(f"Fees in {order_of_magnitude}s of USD")
                        xticks = stacked_values["year"].astype(str)
                        ax.set_xticks([i for i, x in enumerate(xticks)])

                        ax.set_xticklabels(
                            [label.get_text()[:4] for label in ax.get_xticklabels()], rotation=90, ha="left"
                        )

                        ax.grid(axis="y", linestyle=":", alpha=0.5)
                        ax.spines["top"].set_visible(False)
                        ax.spines["right"].set_visible(False)
                        # draw vertical lines for each first month of the year, dotted, transparency 0.5,
                        # with height of the y value for the respective month
                        for year in stacked_values["year"]:
                            ax.vlines(
                                f"{year}",
                                ymin=0,
                                ymax=stacked_values[(stacked_values["year"] == year)]
                                .drop(columns=["year"])
                                .sum(axis=1),
                                linestyle=":",
                                alpha=0.5,
                                color="grey",
                            )

                    plt.tight_layout()
                    print(f"Fee by type reported in {form_name} Filings (2002 - 2026)")
                    plt.show()
                    Fee by type reported in Form DEF 14A Filings (2002 - 2026)

                    Footer

                    Products

                    • EDGAR Filing Search API
                    • Full-Text Search API
                    • Real-Time Filing Stream API
                    • Filing Download & PDF Generator API
                    • XBRL-to-JSON Converter
                    • 10-K/10-Q/8-K Item Extractor
                    • Investment Adviser & Form ADV API
                    • Insider Trading Data - Form 3, 4, 5
                    • Restricted Sales Notifications - Form 144
                    • Institutional Holdings - Form 13F
                    • Form N-PORT API - Investment Company Holdings
                    • Form N-CEN API - Annual Reports by Investment Companies
                    • Form N-PX API - Proxy Voting Records
                    • Form 13D/13G API
                    • Form S-1/424B4 - IPOs, Debt & Rights Offerings
                    • Form C - Crowdfunding Offerings
                    • Form D - Private Placements & Exempt Offerings
                    • Regulation A Offering Statements API
                    • Changes in Auditors & Accountants
                    • Non-Reliance on Prior Financial Statements
                    • Executive Compensation Data API
                    • Audit Fees Data API
                    • Directors & Board Members Data
                    • Company Subsidiaries Database
                    • Outstanding Shares & Public Float
                    • SEC Enforcement Actions
                    • Accounting & Auditing Enforcement Releases (AAERs)
                    • SRO Filings
                    • CIK, CUSIP, Ticker Mapping

                    General

                    • Pricing
                    • Features
                    • Supported Filings
                    • EDGAR Filing Statistics

                    Account

                    • Sign Up - Start Free Trial
                    • Log In
                    • Forgot Password

                    Developers

                    • API Sandbox
                    • Documentation
                    • Resources & Tutorials
                    • Python API SDK
                    • Node.js API SDK

                    Legal

                    • Terms of Service
                    • Privacy Policy

                    Legal

                    • Terms of Service
                    • Privacy Policy

                    SEC API

                    © 2025 sec-api.io by Data2Value GmbH. All rights reserved.

                    SEC® and EDGAR® are registered trademarks of the U.S. Securities and Exchange Commission (SEC).

                    EDGAR is the Electronic Data Gathering, Analysis, and Retrieval system operated by the SEC.

                    sec-api.io and Data2Value GmbH are independent of, and not affiliated with, sponsored by, or endorsed by the U.S. Securities and Exchange Commission.

                    sec-api.io is classified under SIC code 7375 (Information Retrieval Services), providing on-demand access to structured data and online information services.
