Analysis of SEC Administrative Proceedings with Python



On this page:

• Quick Start
• Data Loading
• Proceedings by Year and Month
  • Proceedings by Year and Settlement Type
  • Proceedings by Year And Count of Agreements to Pay Penalties
• Penalty Amount Analysis
  • Penalty Amount by Year
  • Top 10 Penalty Amounts
  • Penalties by Type of Defendant
• Proceedings by Category
• Requested Reliefs by Category
• Violated Securities Laws

This tutorial provides a step-by-step guide to accessing and analyzing SEC administrative proceedings using Python and the Administrative Proccedings API. The dataset for this tutorial contains all SEC administrative proceedings from 1995 to 2024, including parties involved, order types, penalties, and more.

The analysis will cover the following topics:

• Data loading, cleaning, and preprocessing
• Proceedings published per year and month
• Top 10 most common order types
• Penalty amounts per year and respondent type
• And more

!pip install sec-api

# NOTE: Replace with your own API key
API_KEY_SEC_API = "YOUR_API_KEY"

from sec_api import SecAdministrativeProceedingsApi

adminProceedingsApi = SecAdministrativeProceedingsApi(API_KEY_SEC_API)

searchRequest = {
    "query": "releasedAt:[2024-01-01 TO 2024-12-31]",
    "from": "0",
    "size": "50",
    "sort": [{"releasedAt": {"order": "desc"}}],
}

response = adminProceedingsApi.get_data(searchRequest)
proceedings = response["data"]

print(f"Loaded first {len(proceedings)} proceedings")

Loaded first 50 proceedings

import pandas as pd

df = pd.DataFrame(proceedings)
df.head()

	id	releasedAt	releaseNo	fileNumbers	respondents	respondentsText	resources	title	summary	tags	...	parallelActionsTakenBy	hasAgreedToSettlement	hasAgreedToPayPenalty	penaltyAmounts	requestedRelief	violatedSections	orders	investigationConductedBy	litigationLedBy	otherAgenciesInvolved
0	0ab80b58b2fcf40e7497aa0000759a37	2024-12-31T12:19:45-05:00	[34-102060, AAER-4554]	[3-22386]	[{'name': 'Accell Audit & Compliance, PA', 'ty...	Accell Audit & Compliance, PA	[{'label': 'primary', 'url': 'https://www.sec....	ORDER INSTITUTING PUBLIC ADMINISTRATIVE PROCEE...	The SEC has instituted public administrative p...	[fraudulent financial reporting, accounting mi...	...	[]	True	True	[{'penaltyAmount': '75000', 'penaltyAmountText...	[]	[Section 10(b) of the Exchange Act, Rule 10b-5]	[Accell is suspended from appearing or practic...	[]	[]	[]
1	0dbf2331563447a91e64b78077239115	2024-12-30T13:02:35-05:00	[IA-6806]	[3-22385]	[{'name': 'Steven J. Susoeff', 'type': 'indivi...	Steven J. Susoeff	[{'label': 'primary', 'url': 'https://www.sec....	ORDER INSTITUTING ADMINISTRATIVE PROCEEDINGS P...	The SEC has instituted administrative proceedi...	[fraudulent cherry-picking, investment adviser...	...	[]	True	False	[]	[]	[Sections 17(a) of the Securities Act of 1933,...	[Respondent Susoeff is barred from association...	[]	[]	[]
2	8ad2aaf148601d33de3460509dd08cec	2024-12-27T17:12:33-05:00	[34-102047, AAER-4553]	[3-22384]	[{'name': 'Christopher Hiestand', 'type': 'ind...	Christopher Hiestand, CPA	[{'label': 'primary', 'url': 'https://www.sec....	ORDER INSTITUTING PUBLIC ADMINISTRATIVE PROCEE...	The SEC has instituted public administrative p...	[fraudulent financial reporting, accounting mi...	...	[]	True	True	[{'penaltyAmount': '50000', 'penaltyAmountText...	[]	[Section 10(b) of the Exchange Act, Rule 10b-5]	[Hiestand is suspended from appearing or pract...	[]	[]	[]
3	804947f56e7146f94b3ce9bf64d8012a	2024-12-23T14:42:30-05:00	[34-102031]	[3-22383]	[{'name': 'Richard Brown', 'type': 'individual...	Richard Brown	[{'label': 'primary', 'url': 'https://www.sec....	ORDER INSTITUTING ADMINISTRATIVE PROCEEDINGS P...	The SEC has instituted administrative proceedi...	[securities fraud, disclosure fraud]	...	[United States District Court for the Eastern ...	True	False	[]	[disgorgement of profits, civil penalties]	[Section 17(a) of the Securities Act of 1933, ...	[Respondent Brown is barred from association w...	[]	[]	[]
4	91a2c34129c53e911759a959be1aa829	2024-12-20T17:51:48-05:00	[33-11349]	[3-22382]	[{'name': 'Tai Mo Shan Limited', 'type': 'comp...	Tai Mo Shan Limited	[{'label': 'primary', 'url': 'https://www.sec....	ORDER INSTITUTING CEASE-AND-DESIST PROCEEDINGS...	The SEC has instituted cease-and-desist procee...	[unregistered securities, crypto, misleading c...	...	[]	True	True	[{'penaltyAmount': '73452756', 'penaltyAmountT...	[disgorgement of profits, civil penalties]	[Sections 5(a) and 5(c) of the Securities Act,...	[Respondent Tai Mo Shan cease and desist from ...	[]	[]	[]

5 rows × 22 columns

print(df.info())

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 50 entries, 0 to 49
Data columns (total 22 columns):
 #   Column                    Non-Null Count  Dtype
---  ------                    --------------  -----
 0   id                        50 non-null     object
 1   releasedAt                50 non-null     object
 2   releaseNo                 50 non-null     object
 3   fileNumbers               50 non-null     object
 4   respondents               50 non-null     object
 5   respondentsText           50 non-null     object
 6   resources                 50 non-null     object
 7   title                     50 non-null     object
 8   summary                   50 non-null     object
 9   tags                      50 non-null     object
 10  entities                  50 non-null     object
 11  complaints                50 non-null     object
 12  parallelActionsTakenBy    50 non-null     object
 13  hasAgreedToSettlement     50 non-null     bool
 14  hasAgreedToPayPenalty     50 non-null     bool
 15  penaltyAmounts            50 non-null     object
 16  requestedRelief           50 non-null     object
 17  violatedSections          50 non-null     object
 18  orders                    50 non-null     object
 19  investigationConductedBy  50 non-null     object
 20  litigationLedBy           50 non-null     object
 21  otherAgenciesInvolved     50 non-null     object
dtypes: bool(2), object(20)
memory usage: 8.0+ KB
None

import os
import json
import time
import random
import sys
from concurrent.futures import ThreadPoolExecutor
import pandas as pd
from sec_api import SecAdministrativeProceedingsApi

adminProceedingsApi = SecAdministrativeProceedingsApi(API_KEY_SEC_API)

YEARS = range(2024, 1994, -1) # from 2024 to 2004
TEMP_FILE_TEMPLATE = "./temp_file_{}.jsonl"
TARGET_FILE = "./sec-administrative-proceedings.jsonl"


def process_year(year):
    backoff_time = random.randint(10, 800) / 1000
    print(f"Starting year {year} with backoff time {backoff_time:,}s"); sys.stdout.flush()
    time.sleep(backoff_time)

    tmp_filename = TEMP_FILE_TEMPLATE.format(year)
    tmp_file = open(tmp_filename, "a")

    for month in range(12, 0, -1):
        search_from = 0
        month_counter = 0

        while True:
            query = f"releasedAt:[{year}-{month:02d}-01 TO {year}-{month:02d}-31]"
            searchRequest = {
                "query": query,
                "from": search_from,
                "size": "50",
                "sort": [{"releasedAt": {"order": "desc"}}],
            }

            response = None
            try:
                response = adminProceedingsApi.get_data(searchRequest)
            except Exception as e:
                print(f"{year}-{month:02d} error: {e}"); sys.stdout.flush()
                continue

            if response == None or len(response["data"]) == 0:
                break

            search_from += 50
            month_counter += len(response["data"])
            jsonl_data = "\n".join([json.dumps(entry) for entry in response["data"]])
            tmp_file.write(jsonl_data + "\n")

        print(f"Finished loading {month_counter} proceedings for {year}-{month:02d}")
        sys.stdout.flush()

    tmp_file.close()

    return year



if not os.path.exists(TARGET_FILE):
    with ThreadPoolExecutor(max_workers=4) as pool:
        processed_years = list(pool.map(process_year, YEARS))
    print("Finished processing all years.", processed_years)

    # merge the temporary files into one final file
    with open(TARGET_FILE, "a") as outfile:
        for year in YEARS:
            temp_file = TEMP_FILE_TEMPLATE.format(year)
            if os.path.exists(temp_file):
                with open(temp_file, "r") as infile:
                    outfile.write(infile.read())
else:
    print("File already exists. Skipping download.")

File already exists. Skipping download.

# load JSONL into dataframe
df = pd.read_json(TARGET_FILE, lines=True)

# convert "releasedAt" to datetime and to EST timezone
df["releasedAt"] = pd.to_datetime(df["releasedAt"], utc=True)
df["releasedAt"] = df["releasedAt"].dt.tz_convert("US/Eastern")
df["releasedAtYear"] = df["releasedAt"].dt.year
df["releasedAtMonth"] = df["releasedAt"].dt.month
df["releasedAtYearMonth"] = df["releasedAt"].map(lambda x: x.strftime("%Y-%m"))
# Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday
df["releasedAtDay"] = df["releasedAt"].dt.day_name()
df["hasAgreedToSettlement"] = df["hasAgreedToSettlement"].astype(bool)
df["hasAgreedToPayPenalty"] = df["hasAgreedToPayPenalty"].astype(bool)
first_year = df["releasedAtYear"].min(); last_year = df["releasedAtYear"].max()

print(f"Loaded {len(df):,.0f} SEC administrative proceedings from {first_year} to {last_year}\n")
df.head()

Loaded 17,987 SEC administrative proceedings from 1995 to 2024

	id	releasedAt	releaseNo	fileNumbers	respondents	respondentsText	resources	title	summary	tags	...	requestedRelief	violatedSections	orders	investigationConductedBy	litigationLedBy	otherAgenciesInvolved	releasedAtYear	releasedAtMonth	releasedAtYearMonth	releasedAtDay
0	0ab80b58b2fcf40e7497aa0000759a37	2024-12-31 12:19:45-05:00	[34-102060, AAER-4554]	[3-22386]	[{'name': 'Accell Audit & Compliance, PA', 'ty...	Accell Audit & Compliance, PA	[{'label': 'primary', 'url': 'https://www.sec....	ORDER INSTITUTING PUBLIC ADMINISTRATIVE PROCEE...	The SEC has instituted public administrative p...	[fraudulent financial reporting, accounting mi...	...	[]	[Section 10(b) of the Exchange Act, Rule 10b-5]	[Accell is suspended from appearing or practic...	[]	[]	[]	2024	12	2024-12	Tuesday
1	0dbf2331563447a91e64b78077239115	2024-12-30 13:02:35-05:00	[IA-6806]	[3-22385]	[{'name': 'Steven J. Susoeff', 'type': 'indivi...	Steven J. Susoeff	[{'label': 'primary', 'url': 'https://www.sec....	ORDER INSTITUTING ADMINISTRATIVE PROCEEDINGS P...	The SEC has instituted administrative proceedi...	[fraudulent cherry-picking, investment adviser...	...	[]	[Sections 17(a) of the Securities Act of 1933,...	[Respondent Susoeff is barred from association...	[]	[]	[]	2024	12	2024-12	Monday
2	8ad2aaf148601d33de3460509dd08cec	2024-12-27 17:12:33-05:00	[34-102047, AAER-4553]	[3-22384]	[{'name': 'Christopher Hiestand', 'type': 'ind...	Christopher Hiestand, CPA	[{'label': 'primary', 'url': 'https://www.sec....	ORDER INSTITUTING PUBLIC ADMINISTRATIVE PROCEE...	The SEC has instituted public administrative p...	[fraudulent financial reporting, accounting mi...	...	[]	[Section 10(b) of the Exchange Act, Rule 10b-5]	[Hiestand is suspended from appearing or pract...	[]	[]	[]	2024	12	2024-12	Friday
3	804947f56e7146f94b3ce9bf64d8012a	2024-12-23 14:42:30-05:00	[34-102031]	[3-22383]	[{'name': 'Richard Brown', 'type': 'individual...	Richard Brown	[{'label': 'primary', 'url': 'https://www.sec....	ORDER INSTITUTING ADMINISTRATIVE PROCEEDINGS P...	The SEC has instituted administrative proceedi...	[securities fraud, disclosure fraud]	...	[disgorgement of profits, civil penalties]	[Section 17(a) of the Securities Act of 1933, ...	[Respondent Brown is barred from association w...	[]	[]	[]	2024	12	2024-12	Monday
4	91a2c34129c53e911759a959be1aa829	2024-12-20 17:51:48-05:00	[33-11349]	[3-22382]	[{'name': 'Tai Mo Shan Limited', 'type': 'comp...	Tai Mo Shan Limited	[{'label': 'primary', 'url': 'https://www.sec....	ORDER INSTITUTING CEASE-AND-DESIST PROCEEDINGS...	The SEC has instituted cease-and-desist procee...	[unregistered securities, crypto, misleading c...	...	[disgorgement of profits, civil penalties]	[Sections 5(a) and 5(c) of the Securities Act,...	[Respondent Tai Mo Shan cease and desist from ...	[]	[]	[]	2024	12	2024-12	Friday

5 rows × 26 columns

import matplotlib.pyplot as plt
import matplotlib.style as style

style.use("default")

params = {
    "axes.labelsize": 8, "font.size": 8, "legend.fontsize": 8,
    "xtick.labelsize": 8, "ytick.labelsize": 8, "font.family": "sans-serif",
    "axes.spines.top": False, "axes.spines.right": False, "grid.color": "grey",
    "axes.grid": True, "axes.grid.axis": "y", "grid.alpha": 0.5, "grid.linestyle": ":",
}

plt.rcParams.update(params)

# piv table with years = index, months = columns, values = count of proceedings
unique_proceedings = df.explode('fileNumbers').drop_duplicates(subset=['fileNumbers'], keep='last')

df_year_month = unique_proceedings.pivot_table(
# df_year_month = df.pivot_table(
    index="releasedAtYear",
    columns="releasedAtMonth",
    values="id",
    aggfunc="count",
    fill_value=0,
)

total_col = df_year_month.sum(axis=1)
mean_col = round(df_year_month.mean(axis=1), 0)
median_col = round(df_year_month.median(axis=1), 0)

df_year_month["total"] = total_col
df_year_month["mean"] = mean_col
df_year_month["median"] = median_col

total_row = df_year_month.sum(axis=0)
mean_row = round(df_year_month.mean(axis=0), 0)
median_row = round(df_year_month.median(axis=0), 0)

df_year_month.loc["total"] = total_row
df_year_month.loc["mean"] = mean_row
df_year_month.loc["median"] = median_row

df_year_month = df_year_month.astype(int)

print("SEC Administrative Proceedings by Year and Month")
df_year_month

SEC Administrative Proceedings by Year and Month

releasedAtMonth	1	2	3	4	5	6	7	8	9	10	11	12	total	mean	median
releasedAtYear
1995	0	0	0	0	0	0	0	0	1	11	9	7	28	2	0
1996	25	27	15	9	14	14	11	8	66	19	8	12	228	19	14
1997	17	19	15	17	19	13	10	16	75	6	5	25	237	20	16
1998	15	3	14	19	13	20	21	17	56	16	8	14	216	18	16
1999	19	15	20	24	27	11	10	49	61	14	15	15	280	23	17
2000	4	15	15	19	13	32	9	13	64	12	10	28	234	20	14
2001	8	18	16	10	31	28	14	16	39	15	16	18	229	19	16
2002	20	19	33	25	13	27	36	23	24	18	30	39	307	26	24
2003	23	20	21	20	39	26	30	35	49	33	19	23	338	28	24
2004	12	27	31	19	29	24	35	53	56	32	24	35	377	31	30
2005	18	30	15	3	1	2	1	2	15	2	2	8	99	8	2
2006	3	10	3	2	4	3	5	4	13	0	5	2	54	4	4
2007	4	1	1	2	3	3	4	7	12	0	1	2	40	3	2
2008	1	7	8	5	3	4	6	4	13	3	1	2	57	5	4
2009	7	4	3	14	19	44	36	38	27	33	28	31	284	24	28
2010	42	26	45	41	42	34	37	39	57	20	36	28	447	37	38
2011	34	62	32	36	47	39	43	29	48	35	36	31	472	39	36
2012	40	56	38	34	39	33	35	33	47	28	28	44	455	38	36
2013	32	24	38	50	38	18	36	44	97	53	28	33	491	41	37
2014	51	51	41	38	36	54	42	48	131	38	58	33	621	52	45
2015	35	47	47	55	37	101	45	55	104	53	38	57	674	56	50
2016	43	57	48	46	23	57	35	149	85	43	41	53	680	57	47
2017	58	42	29	46	45	47	28	52	95	28	18	33	521	43	44
2018	23	26	33	41	49	49	46	85	152	15	24	52	595	50	44
2019	13	21	105	24	31	33	67	104	158	17	14	20	607	51	28
2020	51	35	20	35	31	30	51	44	157	22	14	34	524	44	34
2021	14	18	16	17	76	27	59	63	98	13	20	28	449	37	24
2022	32	56	19	25	33	41	18	68	142	17	14	16	481	40	28
2023	13	12	17	43	71	27	26	57	177	11	14	15	483	40	22
2024	17	38	17	25	25	28	3	53	178	57	48	50	539	45	33
total	674	786	755	744	851	869	799	1208	2297	664	612	788	11047	920	757
mean	22	26	25	25	28	29	27	40	77	22	20	26	368	31	25
median	18	22	20	24	30	28	29	38	62	18	17	28	412	34	26

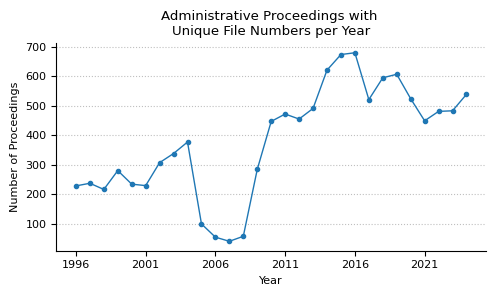

fig, ax = plt.subplots(figsize=(5, 3))

df_year_month.loc[1996:2024]["total"].plot(
    kind="line",
    ax=ax,
    marker="o",
    markersize=3,
    linewidth=1,
)
ax.set_title("Administrative Proceedings with \nUnique File Numbers per Year")
ax.set_xlabel("Year")
ax.set_ylabel("Number of Proceedings")
plt.tight_layout()
plt.grid(axis="x")
ax.set_axisbelow(True)
plt.show()

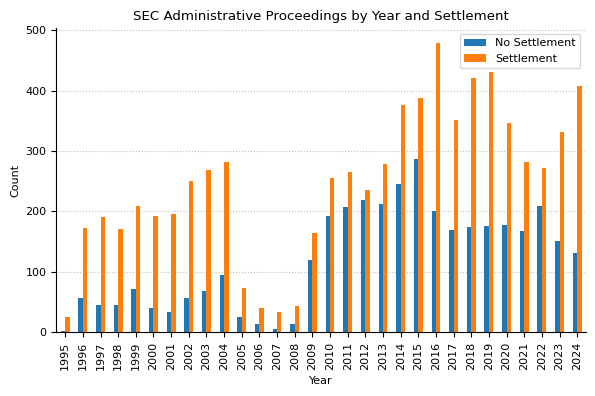

# piv table for hasAgreedToSettlement
# col = hasAgreedToSettlement (true, false), index = year, values = count of cases
df_year_settlement = unique_proceedings.pivot_table(
    index="releasedAtYear",
    columns="hasAgreedToSettlement",
    values="id",
    aggfunc="count",
    fill_value=0,
)

total_col = df_year_settlement.sum(axis=1)
mean_col = round(df_year_settlement.mean(axis=1), 0)
median_col = round(df_year_settlement.median(axis=1), 0)

total_row = df_year_settlement.sum(axis=0)
mean_row = round(df_year_settlement.mean(axis=0), 0)
median_row = round(df_year_settlement.median(axis=0), 0)

df_year_settlement.loc["total"] = total_row
df_year_settlement.loc["mean"] = mean_row
df_year_settlement.loc["median"] = median_row

df_year_settlement = df_year_settlement.astype(int)

df_year_settlement

hasAgreedToSettlement	False	True
releasedAtYear
1995	3	25
1996	56	172
1997	46	191
1998	45	171
1999	71	209
2000	41	193
2001	34	195
2002	56	251
2003	69	269
2004	95	282
2005	25	74
2006	13	41
2007	6	34
2008	13	44
2009	120	164
2010	192	255
2011	207	265
2012	219	236
2013	212	279
2014	245	376
2015	287	387
2016	201	479
2017	170	351
2018	174	421
2019	176	431
2020	178	346
2021	168	281
2022	209	272
2023	151	332
2024	131	408
total	3613	7434
mean	120	248
median	126	260

# stacked bar chart for hasAgreedToSettlement
fig, ax = plt.subplots(figsize=(6, 4))

df_year_settlement.drop(["total", "mean", "median"]).plot(
    kind="bar", stacked=False, ax=ax, color=["#1f77b4", "#ff7f0e"]
)

plt.title("SEC Administrative Proceedings by Year and Settlement")
plt.xlabel("Year")
plt.ylabel("Count")
plt.legend(["No Settlement", "Settlement"], loc="upper right")
plt.grid(axis="x")
ax.set_axisbelow(True)
plt.tight_layout()
plt.show()

# piv table for hasAgreedToPayPenalty
# col = hasAgreedToPayPenalty (true, false), index = year, values = count of cases
df_year_penalty = unique_proceedings.pivot_table(
    index="releasedAtYear",
    columns="hasAgreedToPayPenalty",
    values="id",
    aggfunc="count",
    fill_value=0,
)

total_col = df_year_penalty.sum(axis=1)
mean_col = round(df_year_penalty.mean(axis=1), 0)
median_col = round(df_year_penalty.median(axis=1), 0)

total_row = df_year_penalty.sum(axis=0)
mean_row = round(df_year_penalty.mean(axis=0), 0)
median_row = round(df_year_penalty.median(axis=0), 0)

df_year_penalty.loc["total"] = total_row
df_year_penalty.loc["mean"] = mean_row
df_year_penalty.loc["median"] = median_row

df_year_penalty = df_year_penalty.astype(int)

df_year_penalty

hasAgreedToPayPenalty	False	True
releasedAtYear
1995	22	6
1996	179	49
1997	184	53
1998	158	58
1999	212	68
2000	167	67
2001	170	59
2002	238	69
2003	270	68
2004	263	114
2005	63	36
2006	35	19
2007	24	16
2008	37	20
2009	210	74
2010	355	92
2011	374	98
2012	375	80
2013	369	122
2014	396	225
2015	427	247
2016	420	260
2017	313	208
2018	326	269
2019	421	186
2020	309	215
2021	264	185
2022	313	168
2023	249	234
2024	223	316
total	7366	3681
mean	246	123
median	256	86

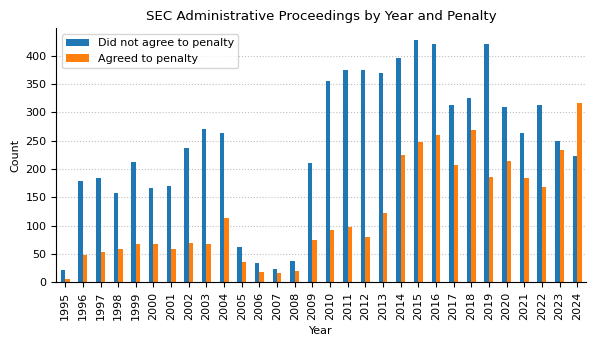

# stacked bar chart for hasAgreedToSettlement
fig, ax = plt.subplots(figsize=(6, 3.5))

df_year_penalty.drop(["total", "mean", "median"]).plot(
    kind="bar", stacked=False, ax=ax, color=["#1f77b4", "#ff7f0e"]
)

plt.title("SEC Administrative Proceedings by Year and Penalty")
plt.xlabel("Year")
plt.ylabel("Count")
plt.legend(["Did not agree to penalty", "Agreed to penalty"], loc="upper left")
plt.grid(axis="x")
ax.set_axisbelow(True)
plt.tight_layout()
plt.show()

all_penalties = []
file_numbers = {}

# iterate over all rows, extract penalties and append to all_penalties
for i, row in unique_proceedings.iterrows():
    penaltyAmounts = row["penaltyAmounts"]

    if isinstance(penaltyAmounts, list):
        for penalty in penaltyAmounts:
            if "penaltyAmount" in penalty:
                # find entity with "name" == "imposedOn"
                entity = list(filter(lambda x: x["name"] == penalty["imposedOn"], row["entities"]))
                entity_type = entity[0]["type"] if entity else None

                all_penalties.append(
                    {
                        # "caseCitation": row['caseCitation'],
                        "fileNumber": row["fileNumbers"],
                        "releaseNo": row["releaseNo"],
                        "releasedAt": row["releasedAt"],
                        "releasedAtYear": row["releasedAtYear"],
                        "releasedAtMonth": row["releasedAtMonth"],
                        "amount": penalty["penaltyAmount"],
                        "imposedOn": penalty["imposedOn"],
                        "imposedOnType": entity_type,
                        # "url": row["url"],
                    }
                )

all_penalties_df = pd.DataFrame(all_penalties)
all_penalties_df["amount"] = all_penalties_df["amount"].astype(float)

# remove all doubles by caseCitation and imposedOn
all_penalties_df = all_penalties_df.drop_duplicates(
    subset=["fileNumber", "imposedOn", "amount"], keep="last"
)

all_penalties_df

	fileNumber	releaseNo	releasedAt	releasedAtYear	releasedAtMonth	amount	imposedOn	imposedOnType
0	3-22386	[34-102060, AAER-4554]	2024-12-31 12:19:45-05:00	2024	12	75000.00	Accell Audit & Compliance, PA	company
1	3-22384	[34-102047, AAER-4553]	2024-12-27 17:12:33-05:00	2024	12	50000.00	Christopher Hiestand	individual
2	3-22382	[33-11349]	2024-12-20 17:51:48-05:00	2024	12	73452756.00	Tai Mo Shan Limited	company
3	3-22382	[33-11349]	2024-12-20 17:51:48-05:00	2024	12	12916153.00	Tai Mo Shan Limited	company
4	3-22382	[33-11349]	2024-12-20 17:51:48-05:00	2024	12	36726378.00	Tai Mo Shan Limited	company
...	...	...	...	...	...	...	...	...
5933	3-8865	[34-36338]	1995-10-05 09:11:20-04:00	1995	10	10000.00	John Laurienti	individual
5934	3-8865	[34-36338]	1995-10-05 09:11:20-04:00	1995	10	50000.00	Dickinson & Co.	company
5935	3-8864	[34-36334]	1995-10-04 09:11:20-04:00	1995	10	11402.50	Lewco Securities Corporation	company
5936	3-8863	[34-36333]	1995-10-04 09:11:20-04:00	1995	10	107000.00	French American Banking Corporation	company
5937	3-8863	[34-36333]	1995-10-04 09:11:20-04:00	1995	10	15918.84	French American Banking Corporation	company

5909 rows × 8 columns

# aggregate amount by year
penalties_year = all_penalties_df.groupby("releasedAtYear")["amount"].sum()
penalties_year = penalties_year.astype(int)
penalties_year = pd.DataFrame(penalties_year)
penalties_year["amount"] = round(penalties_year["amount"] / 1_000_000, 2)
print("Total Penalties in Million USD by Year")
penalties_year

Total Penalties in Million USD by Year

	amount
releasedAtYear
1995	5.22
1996	30.19
1997	20.13
1998	20.49
1999	54.28
2000	131.97
2001	635.92
2002	60.40
2003	431.53
2004	1602.46
2005	752.19
2006	317.54
2007	31.34
2008	681.46
2009	243.64
2010	1566.58
2011	1011.27
2012	319.56
2013	889.66
2014	4464.57
2015	1254.10
2016	1787.28
2017	887.40
2018	1845.09
2019	944.43
2020	3181.67
2021	792.16
2022	1557.67
2023	1478.46
2024	2158.77

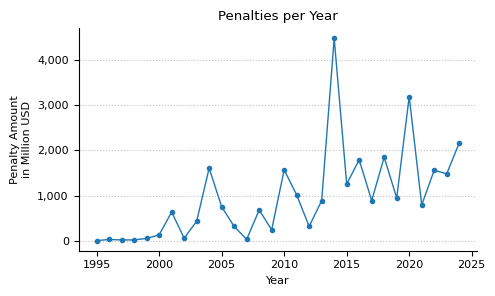

fig, ax = plt.subplots(figsize=(5, 3))

penalties_year["amount"].plot(
    kind="line",
    ax=ax,
    marker="o",
    markersize=3,
    linewidth=1,
)

ax.get_yaxis().set_major_formatter(plt.FuncFormatter(lambda x, loc: "{:,}".format(int(x))))
ax.set_title("Penalties per Year")
ax.set_xlabel("Year")
ax.set_ylabel("Penalty Amount\nin Million USD")
plt.tight_layout()
plt.grid(axis="x")
ax.set_axisbelow(True)
plt.show()

# sort all penalties by amount, show top 10
top_10_penalties = all_penalties_df.sort_values("amount", ascending=False).head(10)
top_10_penalties["amount"] = round(top_10_penalties["amount"] / 1_000_000, 2)
top_10_penalties["amount"] = top_10_penalties["amount"].map("{:,.1f}".format)
print("Top 10 SEC Penalties in Million USD between 1995 and 2024")
top_10_penalties[['amount', 'imposedOn', 'releasedAt', 'releaseNo']]

Top 10 SEC Penalties in Million USD between 1995 and 2024

	amount	imposedOn	releasedAt	releaseNo
3808	900.0	S.A.C. Capital Advisors, LLC	2014-06-27 09:21:21-04:00	[IA-3864]
3809	900.0	CR Intrinsic Investors, LLC	2014-06-27 09:21:21-04:00	[IA-3864]
3810	900.0	Sigma Capital Management, LLC	2014-06-27 09:21:21-04:00	[IA-3864]
3807	900.0	S.A.C. Capital Advisors, L.P.	2014-06-27 09:21:21-04:00	[IA-3864]
2027	853.2	Petróleo Brasileiro S.A. – Petrobras	2018-09-27 09:24:56-04:00	[33-10561, 34-84205, AAER-3989]
944	675.0	Allianz Global Investors U.S. LLC	2022-05-17 09:28:19-04:00	[34-94927, IA-6027]
1345	606.3	The Goldman Sachs Group, Inc.	2020-10-22 09:26:36-04:00	[34-90243, AAER-4191]
5341	606.0	Republic New York Securities Corp.	2001-12-17 08:12:59-05:00	[34-45157]
4329	583.5	Barry J. Minkow	2011-11-22 08:18:30-05:00	[IA-3320]
1449	556.7	Herbalife Nutrition Ltd.	2020-08-28 09:26:48-04:00	[34-89704, AAER-4165]

# create piv table across years and imposedOnType, with values = sum of penalties
penalties_entity_type = all_penalties_df.pivot_table(
    index="releasedAtYear",
    columns="imposedOnType",
    values="amount",
    aggfunc="sum",
    fill_value=0,
)

total_col = penalties_entity_type.sum(axis=1)
mean_col = round(penalties_entity_type.mean(axis=1), 0)
median_col = round(penalties_entity_type.median(axis=1), 0)

total_row = penalties_entity_type.sum(axis=0)
mean_row = round(penalties_entity_type.mean(axis=0), 0)
median_row = round(penalties_entity_type.median(axis=0), 0)

penalties_entity_type.loc["total"] = total_row
penalties_entity_type.loc["mean"] = mean_row
penalties_entity_type.loc["median"] = median_row

# format to million and , notation
penalties_entity_type = round(penalties_entity_type / 1_000_000, 2)
penalties_entity_type = penalties_entity_type.map("{:,.1f}".format)

print("SEC Penalties in Million USD by Year and Entity Type")

penalties_entity_type = penalties_entity_type[['company', 'individual']]
penalties_entity_type

SEC Penalties in Million USD by Year and Entity Type

imposedOnType	company	individual
releasedAtYear
1995	5.2	0.0
1996	21.2	8.9
1997	11.6	5.8
1998	13.4	3.3
1999	51.3	1.9
2000	119.7	12.2
2001	607.9	28.0
2002	13.4	46.9
2003	375.4	56.0
2004	1,002.4	206.5
2005	231.4	5.6
2006	297.7	2.6
2007	28.3	3.1
2008	520.7	101.1
2009	106.0	12.2
2010	1,120.7	39.2
2011	374.0	606.1
2012	161.9	141.3
2013	741.8	145.2
2014	4,128.8	51.9
2015	913.4	83.5
2016	1,713.4	39.7
2017	790.6	38.1
2018	1,705.0	46.1
2019	802.8	78.2
2020	3,121.8	23.0
2021	764.8	23.8
2022	1,333.2	19.0
2023	1,041.8	18.5
2024	1,904.9	29.7
total	24,024.4	1,877.4
mean	800.8	62.6
median	564.3	28.8

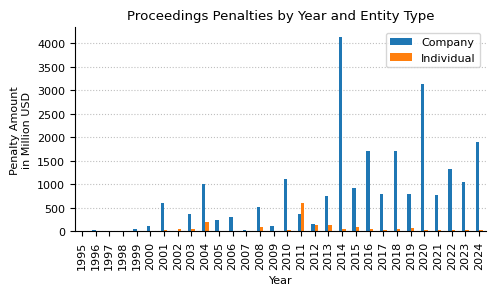

fig, ax = plt.subplots(figsize=(5, 3))

data_to_plot = penalties_entity_type.loc[1995:2024].map(
    lambda x: float(x.replace(",", ""))
)

data_to_plot.plot(kind="bar", stacked=False, ax=ax, color=["#1f77b4", "#ff7f0e"])

plt.title("Proceedings Penalties by Year and Entity Type")
plt.xlabel("Year")
plt.ylabel("Penalty Amount\nin Million USD")
plt.legend(["Company", "Individual"], loc="upper right")
plt.grid(axis="x")
ax.set_axisbelow(True)
plt.tight_layout()
plt.show()

all_tags = []

for i, row in unique_proceedings.iterrows():
    tags = row["tags"]
    if isinstance(tags, list):
      all_tags.extend(tags)

all_tags = pd.Series(all_tags)
all_tags = all_tags.value_counts().reset_index()
all_tags.columns = ["tag", "count"]

print("Top 10 Tags in SEC Administrative Proceedings")
all_tags.head(10)

Top 10 Tags in SEC Administrative Proceedings

	tag	count
0	securities fraud	2115
1	delinquent filings	1676
2	disclosure fraud	1336
3	fraud	894
4	accounting fraud	743
5	unregistered securities	634
6	securities violation	532
7	investment adviser	499
8	insider trading	464
9	misrepresentation	395

# count all unique requestedRelief
all_requested_relief = []

for i, row in unique_proceedings.iterrows():
    requestedRelief = row["requestedRelief"]
    if isinstance(requestedRelief, list):
        all_requested_relief.extend(requestedRelief)

all_requested_relief = pd.DataFrame(all_requested_relief, columns=["requestedRelief"])

all_requested_relief["requestedRelief"] = (
    all_requested_relief["requestedRelief"]
    .str.replace("cease-and-desist order", "cease and desist order")
    .replace("permanent injunctions", "permanent injunction")
)

all_requested_relief = all_requested_relief.value_counts().reset_index()

print("Top 10 Requested Reliefs in SEC Administrative Proceedings")
all_requested_relief.head(10)

Top 10 Requested Reliefs in SEC Administrative Proceedings

	requestedRelief	count
0	civil penalties	2591
1	disgorgement of profits	2045
2	cease and desist order	1709
3	permanent injunction	913
4	suspend or revoke the registration of each cla...	635
5	censure	466
6	civil money penalty	378
7	suspend for a period not exceeding twelve months	287
8	revoke the registration of each class of secur...	285
9	disgorgement	234

# count all unique violatedSections
all_violated_sections = []

for i, row in unique_proceedings.iterrows():
    violatedSections = row["violatedSections"]
    if isinstance(violatedSections, list):
        all_violated_sections.extend(violatedSections)

all_violated_sections = pd.Series(all_violated_sections)
all_violated_sections = all_violated_sections.value_counts().reset_index()

all_violated_sections.columns = ["violatedSections", "count"]

print("Top 10 Violated Securities Laws in SEC Administrative Proceedings")
all_violated_sections.head(10)

Top 10 Violated Securities Laws in SEC Administrative Proceedings

	violatedSections	count
0	Rule 10b-5	2547
1	Exchange Act Section 13(a)	1701
2	Section 10(b) of the Exchange Act	1445
3	Rules 13a-1 and 13a-13	1251
4	Section 17(a) of the Securities Act of 1933	1137
5	Section 10(b) of the Securities Exchange Act o...	699
6	Section 17(a) of the Securities Act	570
7	Rules 13a-1	528
8	Section 13(a) of the Exchange Act	492
9	Rules 13a-13	472
